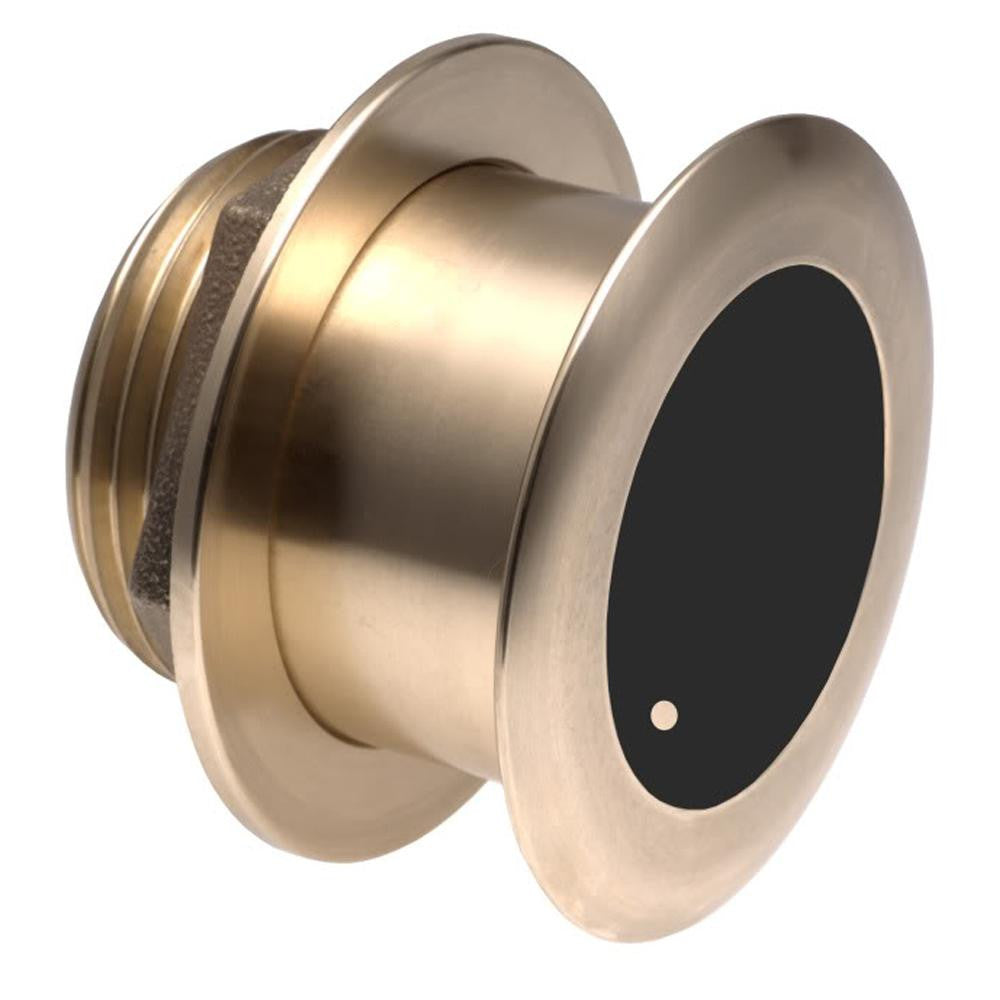

Simrad B175H-W Bronze Thru-Hull 0° Tilted Element™ Transducer - Wide Beam CHIRP - 1kW
B175H-W Wide Beam CHIRP, 1 kW, Tilted-Element
Description
The B175H-W is a bronze, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8 m (25 ft) in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths.
Features
Single Channel CHIRP
Using pulsed transmissions swept across a range of frequencies, CHIRP technology delivers superior target resolution and depth penetration to traditional single-frequency sonar. This single channel CHIRP transducer operates anywhere in the 130-210 kHz High CHIRP frequency range, with a 25° beam width. With High CHIRP, the B175H-W provides an operating depth of up to 310 m (1000 ft).
Wide Angle CHIRP
Ideal for anglers, the B175H-W's wide-angle technology delivers a constant 25° beam width across the transducer's 130-210 kHz High CHIRP frequency range. This achieves up to double the coverage beneath your boat, and provides enhanced fish detection in the upper water column, versus the narrower beam of other high-frequency CHIRP transducers.
Depth/Temperature
One sensor does it all. Able to measure both depth and temperature in a single package, the B175H-W simplifies installation and requires just one connection to your echosounder module or multifunction display.
Product : SIMRAD B175H-W/O B175H WIDE BRONZE 0 DEGREE CHIRP
Manufacturer : SIMRAD
Manufacturer Part No : 000-11689-001
UPC : 9420024133347
Description
The B175H-W is a bronze, thru-hull CHIRP transducer, ideal for sportfishing and commercial vessels up to 8 m (25 ft) in size. This single-channel transducer offers High CHIRP combined with a wide beam for the best resolution and coverage in shallower depths.
Features
- 7 Pin Blue Connector
- Depth & Temperature
- 130-210 kHz High CHIRP with wide 25° beam for excellent fish targets
- Up to 310 m (1000 ft) range with High CHIRP
- 1 internal broadband ceramic
- 1 kW
- High-Performance
- Bronze
- SonarHub sounder module & Simrad NSS evo2 multifunction displays
Single Channel CHIRP
Using pulsed transmissions swept across a range of frequencies, CHIRP technology delivers superior target resolution and depth penetration to traditional single-frequency sonar. This single channel CHIRP transducer operates anywhere in the 130-210 kHz High CHIRP frequency range, with a 25° beam width. With High CHIRP, the B175H-W provides an operating depth of up to 310 m (1000 ft).
Wide Angle CHIRP
Ideal for anglers, the B175H-W's wide-angle technology delivers a constant 25° beam width across the transducer's 130-210 kHz High CHIRP frequency range. This achieves up to double the coverage beneath your boat, and provides enhanced fish detection in the upper water column, versus the narrower beam of other high-frequency CHIRP transducers.
Depth/Temperature
One sensor does it all. Able to measure both depth and temperature in a single package, the B175H-W simplifies installation and requires just one connection to your echosounder module or multifunction display.
Product : SIMRAD B175H-W/O B175H WIDE BRONZE 0 DEGREE CHIRP
Manufacturer : SIMRAD
Manufacturer Part No : 000-11689-001
UPC : 9420024133347
