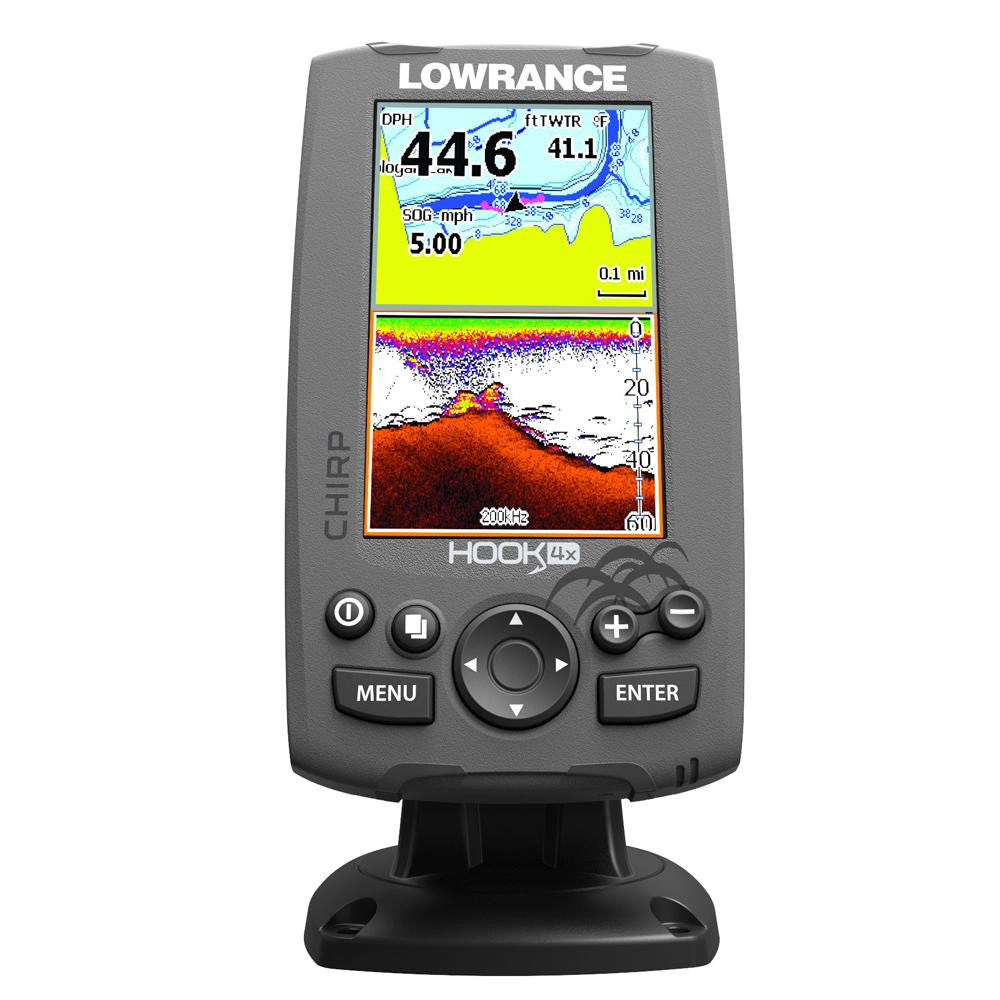

Lowrance HOOK-4x Fishfinder w-83-200-455-800 HDI Transom Mount Transducer

HOOK-4x Fishfinder w/83/200/455/800 HDI Transom Mount Transducer

The Hook-4x combines the benefits of CHIRP Sonar and DownScan Imaging™ technology to give you a clear and complete view of the underwater environment beneath your boat. Featuring a brilliant 4.3" color display, the Hook-4x is powered by high-performance sonar with enhanced sonar sensitivity, excellent target separation and superior noise rejection, making it easier to see baitfish and gamefish targets.

Features:

• Lowrance-exclusive, brilliant, high-resolution, 4.3", color display

• CHIRP Sonar plus DownScan Imaging™ - the power of today's leading fishfinder technologies combined to provide the best possible view beneath your boat

• DownScan Overlay™ technology overlays DownScan Imaging onto CHIRP Sonar

• Advanced Signal Processing (ASP) reduces the need to manually adjust settings to see fish, structure and bottom detail more clearly

• TrackBack™ to review recorded sonar history including structure, transitions or fish targets, then pinpoint locations with a waypoint

• View multiple CHIRP ranges from a single transducer

• CHIRP sonar performance with a greater number of affordable transducers, including the Lowrance HDI Skimmer®

• View multiple CHIRP sonar settings on one display

• Convenient Page selector menu with quick access to all features using one-thumb operation

• Multi-Window Display lets you quickly choose from pre-set page layouts - including a three-panel view

Specifications
Overview

• Display:4.3" / 109.22mm

• Resolution :256-color TFT 480 x 272

• Backlighting :11-Level LED

• Power Output:Max 500W RMS

• Operating Frequency :455/800 kHz (DownScan Imaging™), Med, High (CHIRP), 83kHz/200kHz

• Languages:14

• Operating Voltage:12 VDC (10-17 VDC min-max)

• Warranty:One year

Sonar

• Max Depth per Type:

• DownScan Imaging™ at 455 kHz: Max 300' / 91M

• CHIRP Sonar High Range/200 kHz: 1,000' / 305M

• CHIRP Sonar Med Range/83 kHz: 1000' / 305M

• Depth Alarm:Yes

• Shallow Alarm:Yes

• Temperature Readings:Yes

• Transducer Type:83/200/455/800 HDI Transom Mount Transducer

Display

• Display Resolution:480 x 272

• Display Type:16-bit color TFT

• Display Backlighting:LED

• Backlighting Levels:Adjustable Screen And Keypad

• Display Size:4.3" / 109.22mm

Technical/Environmental

• Waterproof Standard/rating: IPx7

• Product Width: 3.8" / 96mm

• Product Depth: 2.2" / 56mm

• Product Height: 6.6" / 168mm (7.5" / 189mm with bracket)

Product : LOWRANCE HOOK-4X FISHFINDER WITH 83/200/455/800 TM DUCER
Manufacturer : LOWRANCE
Manufacturer Part No : 000-12641-001
UPC : 9420024146415
