Lowrance Elite-7 Ti Touch Combo - Med-High-455-800 HDI Transom Mount w-Navionics+ Chart

Elite-7 Ti Touch Combo - 83/200/455/800 HDI Transom Mount Transducer and Navionics+ Chart

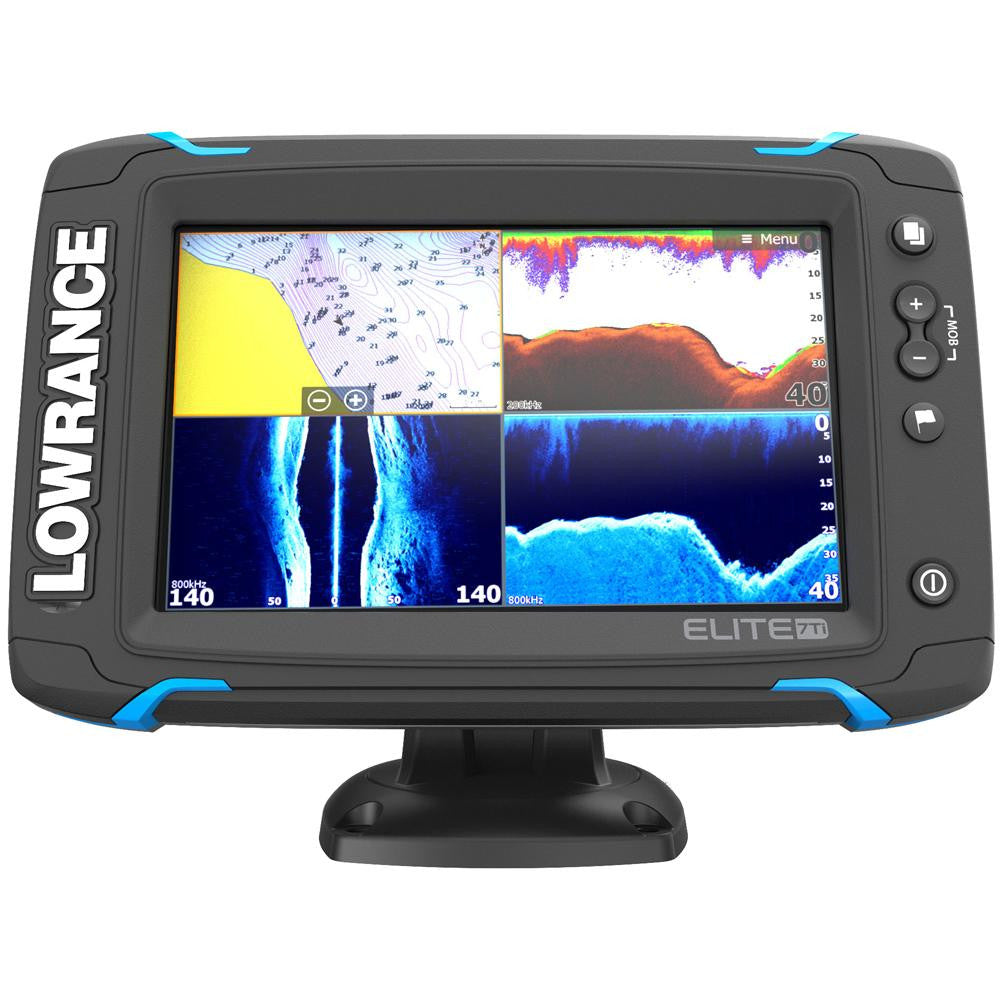

The Lowrance® Elite-7 Ti is a touchscreen fishfinder/chartplotter that matches high-end functions and features with powerful performance - all at an affordable price.

Sporting a 7", high-resolution touchscreen display, the Elite-7 Ti has your sonar needs covered with StructureScan® HD compatibility and support for Low/Mid/High CHIRP and 83/200 /455/800kHz frequencies. It has a built-in GPS antenna and reliable Lowrance navigation technology, allowing you to navigate with ease. The Elite-7 Ti also features integrated Bluetooth® and wireless connectivity that not only allows you to download software updates directly to the unit, but gives you the capability to download Insight Genesis custom maps to the unit - for immediate use - directly from the water.

Features:

• High resolution display:Lowrance-exclusive, high-resolution, 7", LED-backlit color display

• Easy-to-use touchscreen:Touchscreen provides fast, fingertip access to all Elite-7 Ti features

• CHIRP Sonar, StructureScan®and DownScan Imaging™:Top-of-the line sonar technologies provide the best possible view of the environment beneath your boat. StructureScan requires optional TotalScan transducer

• TrackBack™:Scroll back through your sonar, SideScan or DownScan history to review structure or fish targets and mark the location with a waypoint

• Internal GPS antenna:Highly accurate, built-in GPS antenna plus a detailed U.S. map

• Optional chart upgrades:Optional Americas chart upgrades include Lake Insight™ and Nautic Insight™ PRO and HD, Navionics HotMaps® Premium and Fishing Hotspots® PRO. Global chart upgrade options include Navionics + and Jeppesen C-MAP MAX-N

• Built-in wireless connectivity:Provides access to the GoFree Cloud where you can shop, purchase, download and immediately use Insight maps, and third-party maps from GoFree partners

• microSD card slot

• Quick Release bracket

Specifications:

Overview:

• Display:7"/ 178mm (16:9)

• Resolution:800W x 480H

• Backlighting:LED

• Power Output:Max 500W RMS

• Languages:31 - Available in regional language packs

• Media Port:1 microSD slot

• Power Supply (Supply voltage):12 VDC (10-17 VDC min-max)

• Current Draw [kW]: 12 W (0.9 A @ 13 vDC)

Sonar

• DownScan Imaging™ at 455 kHz: Max 300' / 91M

• SideScan Imaging at 455kHz: Max 300' /91M to each side

• CHIRP Sonar High Range/200 kHz: 1000' / 305M

• CHIRP Sonar Med Range/83 kHz: 1000' / 305M

Available Sonar Frequencies

• Low/Mid/High CHIRP

• 50/83/200 kHz Broadband

• 455/800 kHz SideScan/DownScan imaging

• Depth Alarm:Yes

• Shallow Alarm:Yes

• Temperature Readings:Yes

• Transducer Type:9-pin Connection, with optional 9-pin to 7-pin adapter Multiple Selections Lowrance and Airmar

GPS Navigation

• Navigation: Routes:100

• Navigation: Waypoint Storage:3000

• Plot Trails:Up to 100 trails with up to 10,000 points per trail

• GPS Antenna Type:10kHz Internal high-sensitivity WAAS/EGNOS/MSAS

• GPS Alarms:Yes

• Custom Mapping:Lake Insight™ and Nautic Insight™ PRO and HD, Insight Genesis™, Navionics® Gold and HotMaps® Premium, Fishing Hotspots® PRO (US Models) and Jeppessen C-Map Max-N

• Networking:NMEA 0183 and NMEA 2000®

Comes with

• Display

• Mounting Bracket (QRB-5)

• Power Cable (000-0127-49)

• Med/High/455/800 khz Transom Mount Transducer(000-12570-001)

• Navionics+ Chart

Product : LOWRANCE ELITE-7 TI TOUCH COMBO MED/HIGH/455/800 HDI TM
Manufacturer : LOWRANCE
Manufacturer Part No : 000-12699-001
UPC : 9420024147047
