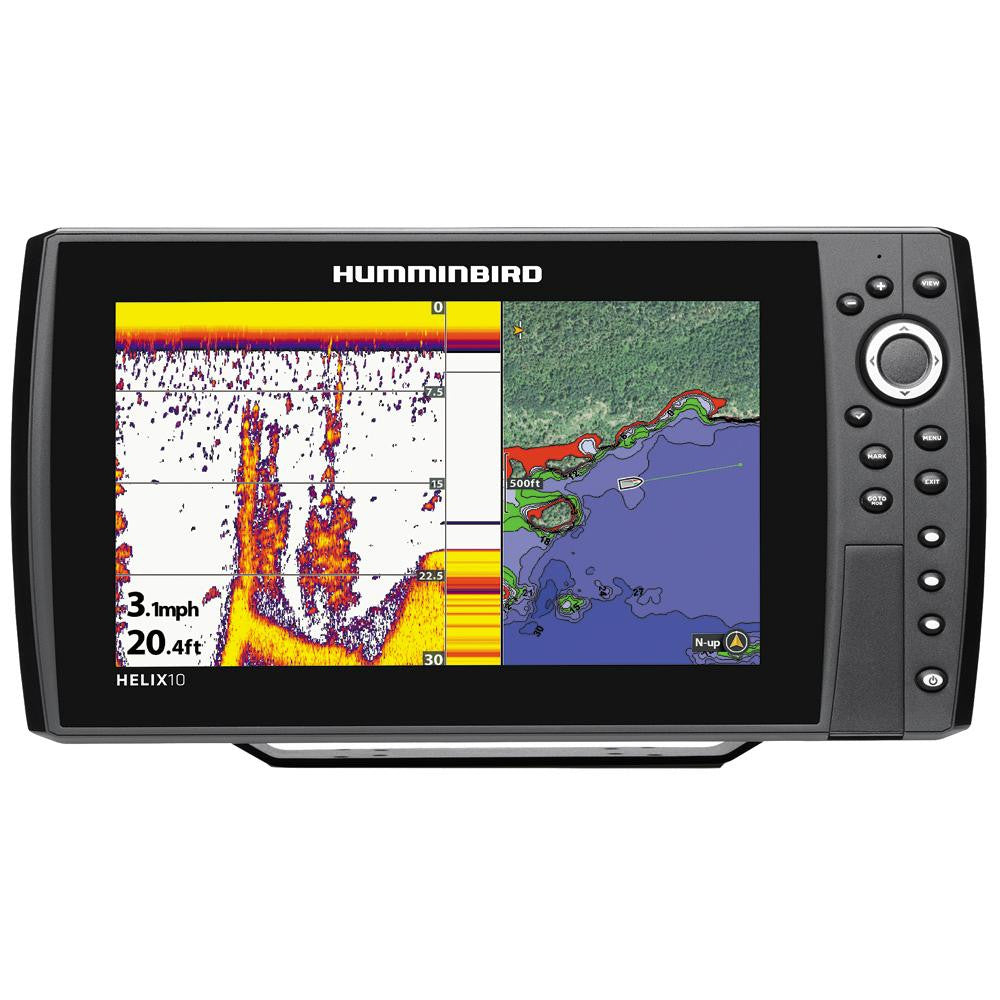

Humminbird HELIX 10 Sonar-GPS Combo

HELIX 10 Sonar/GPS Combo

The HELIX 10 Sonar GPS features a super bright LED backlit 10.1" display. This wide screen 1024H x 600V color display provides bright, crystal-clear images for easy viewing in harsh sunlight. The DualBeam PLUS sonar with SwitchFire has 4000 watts PTP power output, GPS Chartplotting with built-in Humminbird ContourXD map and Ethernet networking capabilities. Includes a unit cover, dual card reader and Instant Access Preset buttons.

*Optional 50 kHz transducers available for extreme deepwater use

*To obtain 1000 watts, optional deepwater transducer required

Specifications:

• Display Size - Diagonal: 10.1"

• Display Pixel Matrix: 600V x 1024H

• Display Type: Color TFT

• Display Colors Grayscale: 65,000 Colors

• Sonar Standard:DualBeam PLUS

• Standard Sonar Coverage:20°& 60° @ -10db

• Standard Sonar Frequency:50*/83/200/455 kHz

• Target Separation:2.5"

• Power Output RMS:1000 Watts*

• Power Output Peak to Peak:8000 Watts*

• Depth Capability:150 ft (SI/DI), 1500 ft & 3000 ft*

• Temperature:Built-In Transducer

• Speed: GPS Speed Included

• Backlight:LED

• Unit Size - Gimbal Mount:13.44"W x 7.12"H x 4.20"D

• Mount A Type:Gimbal

• Unit Size - Indash Mount:13.44"W x 7.12"H x 3.99""D

• Mounting Options:Optional In-Dash Mounting Kit

• Transducer Standard: XNT 9 20 T

• Transducer Mounting:Transom

• Power Input:10-20 VDC

• GPS Receiver:Included

• GPS Tracking:Included

• GPS Chartplotting:Included

• Waypoints, Routes, Tracks/Points:2,750, 45, 50/20,000

• Humminbird Mapping:Optional

• Navionics Gold/HotMaps:Optional

• Navionics Platinum+:Optional

• Platinum Capable:Optional

• C-Map 4D:Not Supported

• 360 Imaging:Optional

• i-Pilot Link:Optional

• HD Radar:Optional

• NMEA 2000:Optional

• 5 Port Expansion Module:Optional

• WeatherSense:Not Supported

• Precision GPS:Included

• Heading Sensor GPS:Optional

• PC Connect:Optional

• External GPS Receiver:Optional

• AS Interlink:Not Supported

• AIS Compatability:Optional

• SwitchFire Sonar:Included

• Screen Snap Shot:Included

• Sonar Recording:Included

• Humminbird PC:Included

• Upgradable Internal Software:Included

• Split Screen Zoom:Included

• Split Screen Bottom Lock:Included

• 3D Chart View:Included

• Large Digits View:Included

• Wide/Narrow Cone Split Screen:Included

• Custom View Selections:Included

• Custom Digital Readout:Included

• View Preset Keys:Included

• Temperature Graph:Included

• Temperature Alarm:Included

• Freeze Frame:Included

• Instant Image Update:Included

• Mark Structure on Sonar:Included

• Selective Fish ID+:Included

• Real Time Sonar:Included

• Triplog:Included

• X-Press Menu System:Included

• Card Reader Available:Yes

• # Card Slots:2

Product : HUMMINBIRD HELIX 10 SONAR/GPS COMBO
Manufacturer : HUMMINBIRD
Manufacturer Part No : 409960-1
UPC : 082324047381
