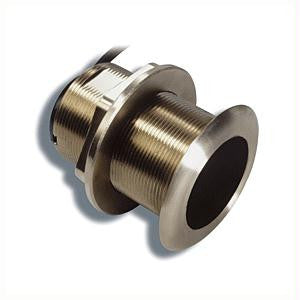

Furuno B60-20, 20 Degree Tilted Element Transducer

B60 Tilted Element™ 20° Furuno 10 pin connector

20° titled version is designed for 16° - 24° deadrise angles


The bronze B60-20° provide a vertical beam without a fairing. Inside the housing, the ceramic element is tilted to provide built-in deadrise compensation. The resulting vertical beam provides excellent echo returns for more accurate depth readings. The nearly flush housing minimizes drag with only 5 mm (3/16") extending outside of the hull.

Features:

• Depth/Temp

• 50/200 kHz

• 600w RMS

• Mid-performance

• Bronze

Product : FURUNO B60-20 TILTED ELEMENT DUCER W/ 10P PIGTAIL CONNECTOR
Manufacturer : FURUNO
Manufacturer Part No : 525T-LTD/20
UPC : 611679307934
